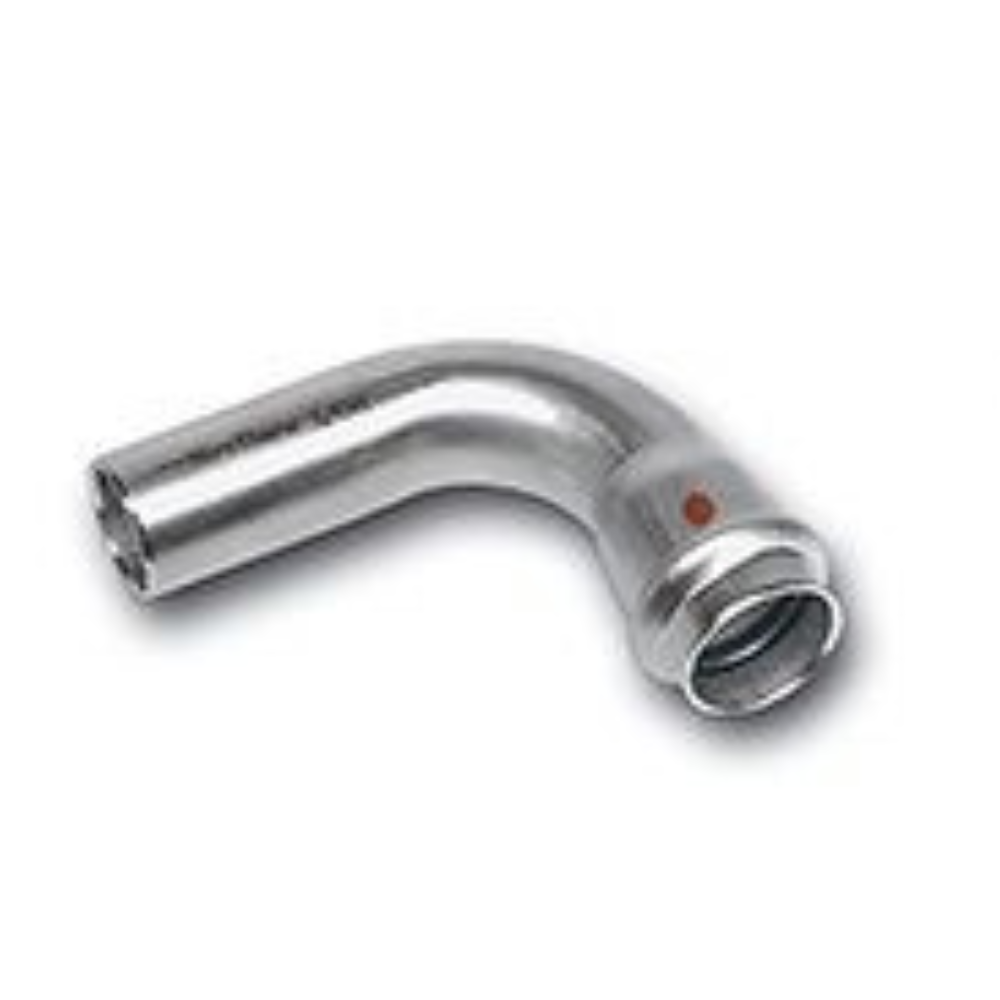

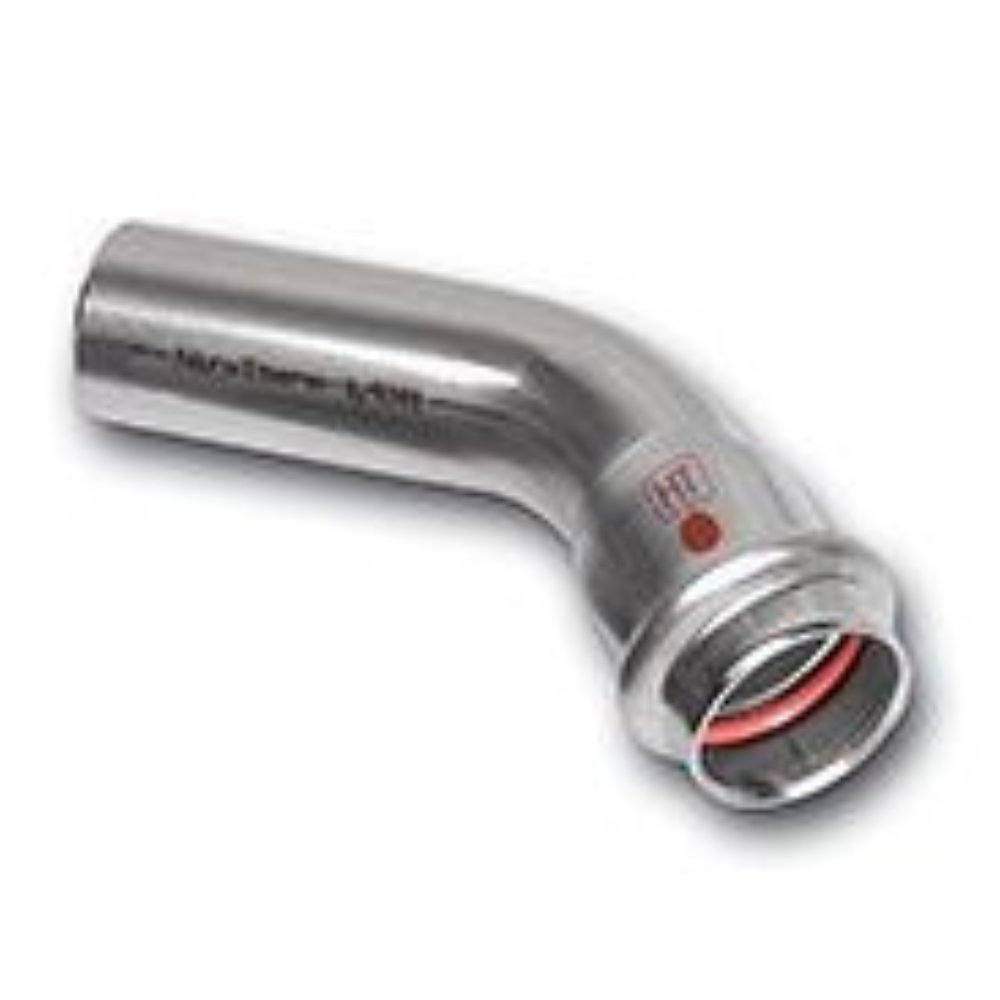

NiroTherm® Industry system press fittings are marked on the outside with a read “HT” and a red dot.
All press fittings are also available in a labs-free version with EPDM o ring!
Tool compatibility and Push & Stay
+ Tool compatibility: pressable with press jaws and slings with original SA, V and M contour up to and including 54 mm
+ Push & Stay function for safe, reliable installation in every position
First class material, lower labour cost
NiroTherm® Industry is especially useful where carbon steel systems cannot be installed or need to be heavily protected against corrosion. NiroTherm® Industry needs less protection as the material itself offers an additional layer of safety.
Fast installation, no risk of fire
The connection with stainless steel pipes by cold pressing enables a fast, time-saving installation and eliminates the risk of fire during the process. NiroTherm® installation systems are therefore ideally suited for renovation work.
High corrosion resistance
The premium stainless steel type 1.4404 (316L) and the exceptionally smooth, passivated surface of pipes and fittings lead to an excellent corrosion resistance.
Exceptional flexibility
- All dimensions from 15 to 108 mm
- Secure, permanent connection with NiroSan® pipes
- Reliable, permanent connection with NiroTherm® and NiroSan® stainless steel system pipes:
- NiroTherm® (1.4301/304), optimized wall thickness, TIG welded, annealed for improved corrosion resistance
- Can also be combined with SANHA®-Therm carbon steel system pipes
- Thread according to EN 10226 and ISO7/1 Type R and Rp
- Compressed air
- Fuel oil
- District heating supply systems
- Technical gases
- Diesel
- Inert gases
- Cooling water
- Solar systems
