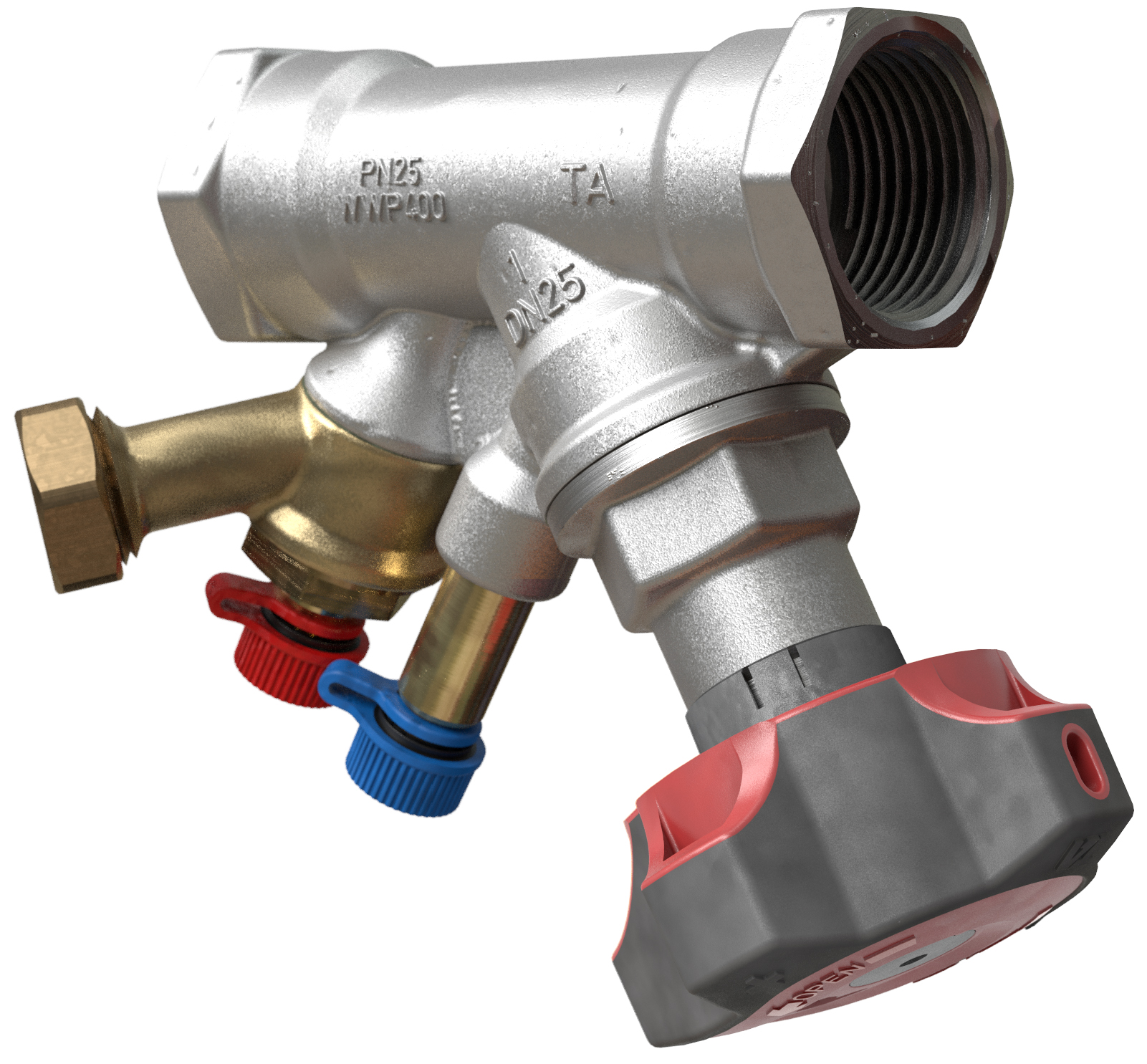

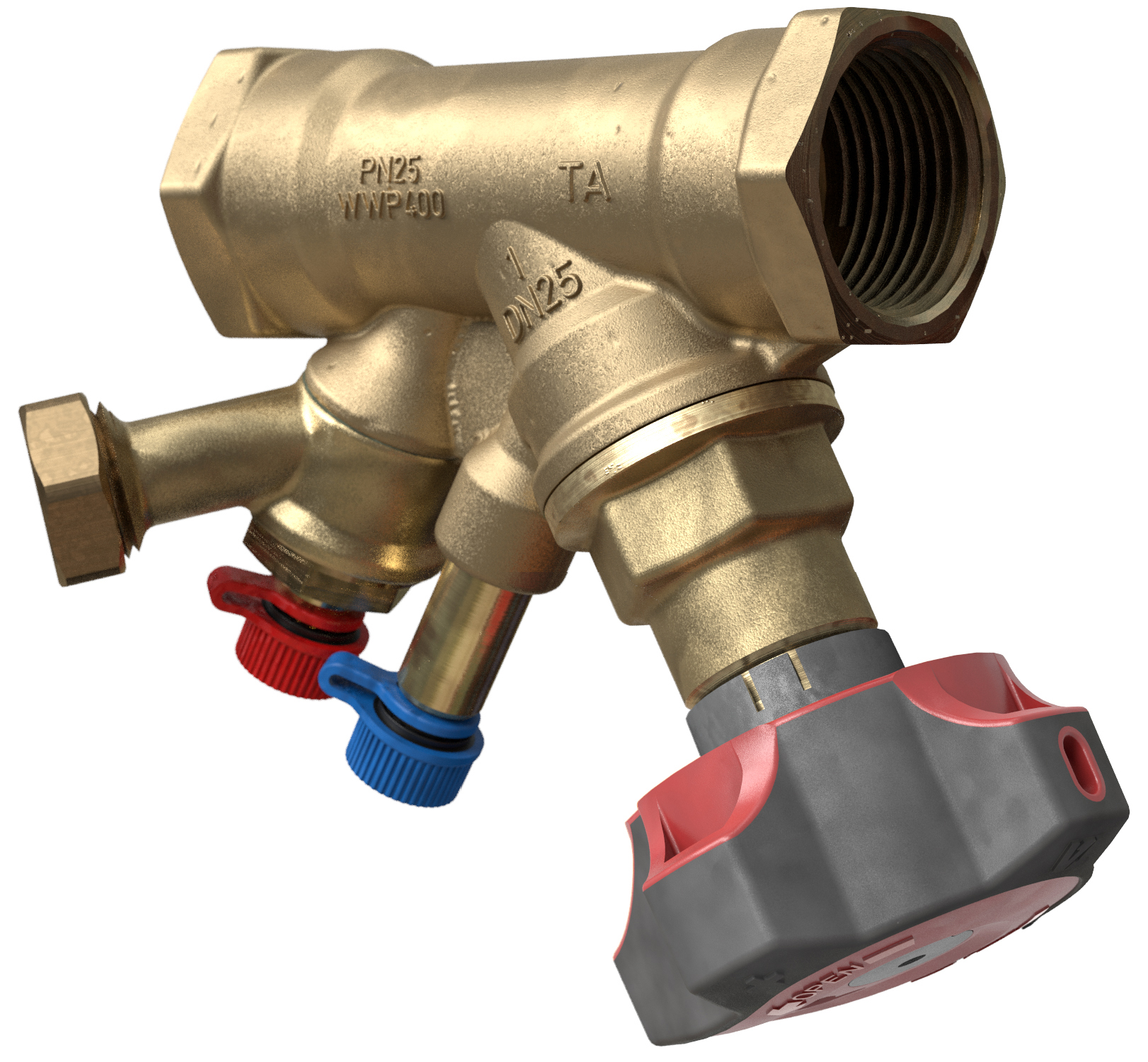

Balancing valve DN 15-50 with double secured measuring points
The STAD-C balancing valve has been specially developed for use in indirect cooling systems but performs just as effectively in refrigerated counters and cold-storage rooms. Whatever the application, the STAD-C delivers unrivalled hydronic performance.

Description

Handwheel
Equipped with a digital read-out, the handwheel ensures accurate and straightforward balancing. Positive shut-off function for easy maintenance.

Self-sealing measuring points
Doubly secured and self-sealing for total protection against leakage. Also enable more straightforward maintenance.

AMETAL®
Dezincification resistant alloy that guarantees a longer valve lifetime and lowers the risk of leakage.

Technical description
Application:
Heating and cooling systems
Tap water systems

Functions:
Balancing
Pre-setting
Measuring
Shut-off

Dimensions:
DN 15-50

Pressure class:
PN 20

Temperature:
Max. working temperature: 150°C
(At temperatures higher than 120°C, the handwheel should be removed.)
Min. working temperature: -20°C

Media:
Water or neutral fluids, water-glycol mixtures (0-57%).

Material:
Valve body and bonnet: AMETAL®
Sealing (body/bonnet): EPDM O-ring
Valve plug: AMETAL®
Seat seal: EPDM O-ring
Spindle: AMETAL®
Slip washer: PTFE
Spindle seal: EPDM O-ring
Spring: Stainless steel
Handwheel: Polyamide and TPE

Measuring points: AMETAL®
Sealings: EPDM
Caps: Polyamide and TPE

AMETAL® is the dezincification resistant alloy of IMI Hydronic Engineering.

Marking:
Body: IMI or TA, PN 20/150, DN and inch size.
Handwheel: TA, valve type and DN.

Connection:
– Male thread according to ISO 228. Thread length according to DIN 3546.
– Soldering ends

Premium material stainless steel

All NiroSan® press fittings are made from the premium stainless steel type 1.4404 / AISI 316L (for pressing components) and 1.4408 (for precision cast threaded stainless steel components). The material 1.4404 contains at least 2.3 % molybdenum, yet less carbon than the conventional type 1.4401. For this reason material no 1.4404/316L is a superior material with higher corrosion resistance than standard stainless steels.

The range encompasses all common fitting geometries such as

  • tees,
  • bends,
  • elbows,
  • flanges,
  • single and double wall plates / wall flanges,
  • couplings,
  • reducers,
  • adaptors,
  • caps,
  • unions,
  • brackets and more
Certified quality

The NiroSan® press system and its components are certified in accordance with the rules and regulations of all important national and European certification bodies such as WRAS, KIWA, DVGW and many more.

Silicone free version

All press fittings and pipes of this series are also available in a silicone free version with an EPDM O-ring (series 9000 SF). This is especially useful in industrial production which require silicone-free environments and media and ensures that no silicone is introduced by the piping system.

Features

combipress =

+ tool compatibility: pressable with press jaws and slings with original SA, V and M contour up to and including 54 mm
+ Leak path feature (certified forced leakage before pressing with EPDM and HNBR sealing rings) in combination with
+ Push & Stay function for safe, reliable installation in every position

Fast installation, no risk of fire

The connection with stainless steel pipes by cold pressing enables a fast, time-saving installation and eliminates the risk of fire during the process. NiroSan® installation systems are therefore ideally suited for renovation work.

Better corrosion resistance

The premium stainless steel type 1.4404 (316L) and the exceptionally smooth, passivated surface of pipes and fittings lead to an excellent corrosion resistance, surpassing that of conventional products.

Exceptional flexibility

  • All dimensions from 15 to 168 mm including 64 mm available
  • Reliable, permanent connection with NiroSan® stainless steel system pipes:
    • NiroSan® (1.4404/316L), EN 10088, TIG-welded, annealed, low carbon, high (≥ 2,3 %) molybdenum content for increased corrosion resistance. Labelled in black lettering.
    • NiroSan® ECO (1.4404/316L), EN 10088, optimized wall thickness, TIG-welded, annealed, low carbon, high ( ≥ 2,3 %) molybdenum content for increased corrosion resistance.
    • NiroSan®-F (1.4521/444), EN 10088, TIG-welded, pickled for improved corrosion resistance, nickle-free
  • Thread according to EN 10226 and/or ISO7/1 Typ R und Rp
Areas of application
  • Drinking water
  • Fire extinguishing system (wet)
  • Cooling water
  • Heating
  • Sprinkler systems (wet)
  • Ship building
  • Rainwater
  • Inert gases
  • Compressed air (oil ≤ 25 mg/m³)
