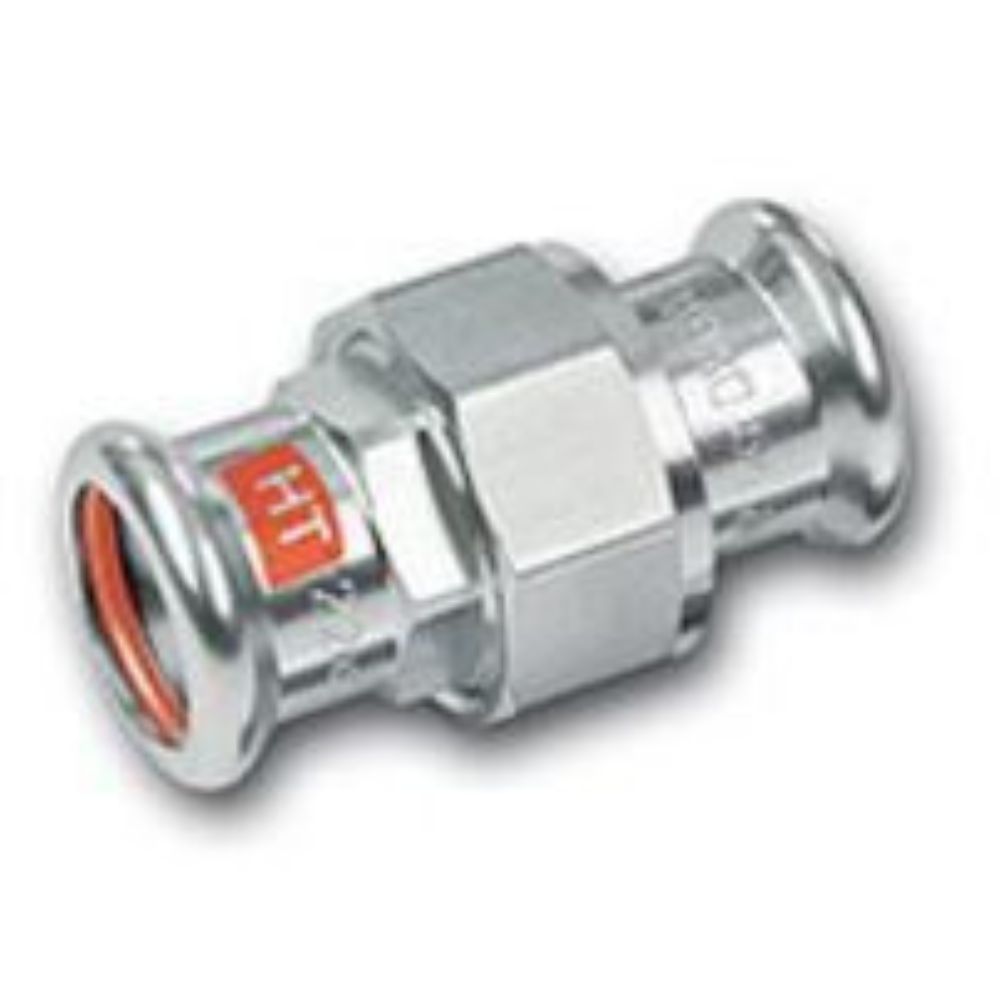

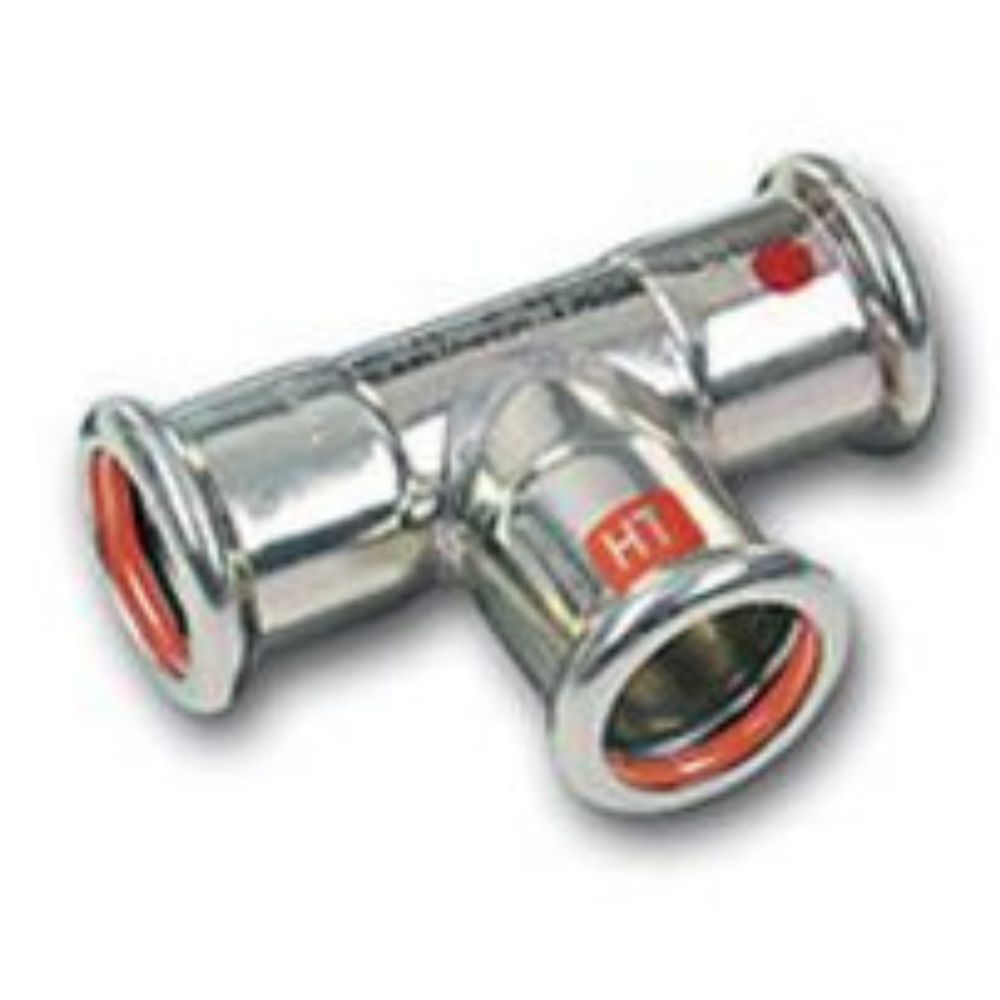

The IPS®-Therm Industry piping system consists of tried and trusted IPS®-Therm Industry system press fittings with a red moulded FKM (fluoro and perfluoro elastomer) sealing ring for high temperature applications and IPS®-Therm carbon steel system pipes according to EN 10305-3. The carefully manufactured installation system and its components offer a very attractive economical solution for closed heating circuits. At the same time, IPS®-Therm Industry is extremely well suited for dry compressed air systems (DZ version). In the hot-dip galvanised version, suitable system pipes are available, which are characterised in particular by their very high flexibility and ease of bending. Our carbon steel system is also available in a special version free of paint wetting disruptive substances (series 27000). Carbon steel pipes and fittings require special care and treatment in terms of corrosion protection and can therefore only be used when the specific IPS® installation requirements are followed. IPS®-Therm Industry system press fittings are labelled with the red letters „HT“ printed on the outside.

Features

+ tool compatibility: pressable with press jaws and slings with original SA, V and M contour up to and including 54 mm

+ Leak path feature (certified forced leakage before pressing with EPDM and HNBR sealing rings) in combination with

+ Push & Stay function for safe, reliable installation in every position

Fast installation, no risk of fire

The connection with carbon steel pipes by cold pressing enables a fast, time-saving installation and eliminates the risk of fire during the process. SANHA®-Therm installation systems are therefore ideally suited for renovation work.

Exceptional flexibility

Permanent connection with carbon steel system pipes according to EN 10305-3 and/or EN 10346 (DZ version):

  • SANHA®-Therm installation pipes, galvanized on the outside:
    • TIG-welded, pressure tight precision steel pipes in unalloyed steel E195 (material no. 1.0034)
    • Ideally suited for heating thanks to no galvanization of the inside = no risk of pump pollution
    • Condition on delivery +CR1
  • SANHA®-Therm installation pipes, DZ version, galvanized on the in- and outside:
    • TIG-welded, precision steel pipes with optimized wall thickness from unalloyed steel
    • Pipes are made from continuously galvanized steel (Sendzimir process) according to EN 10346
    • Higher corrosion resistance due to galvanization on both sides and therefore optimally suited for use in fire extinguishing and sprinkler systems
    • Material E 195 (Z275 MBO) with the material no. 1.0034 according to EN 10305-3
    • Condition on delivery +CR2
    • Available in the dimensions 22 – 108 mm (sprinkler portfolio)
  • hot-dip galvanised SANHA®-Therm installation pipes:
    • Hot-dip galvanised unalloyed steel with optimized wall thickness
    • Material E195, material no. 1.0034 according to EN 10305-3
    • Optimized wall thickness allows easy deforming
    • invisible welding seam
  • Superior corrosion resistance due to galvanization of one or both sides (depending on version)
  • All dimensions 12 – 108 mm including 67 mm
  • Safe connection
  • Thread compliant with EN 10226 and/or ISO7/1 type R and Rp

Areas of application

  • Compressed air (dry, oil content ≤ 25 mg/m³)
  • Ship building
  • Sprinkler systems (wet)
  • Cooling water
  • Heating – closed circuits (no DZ pipes)
